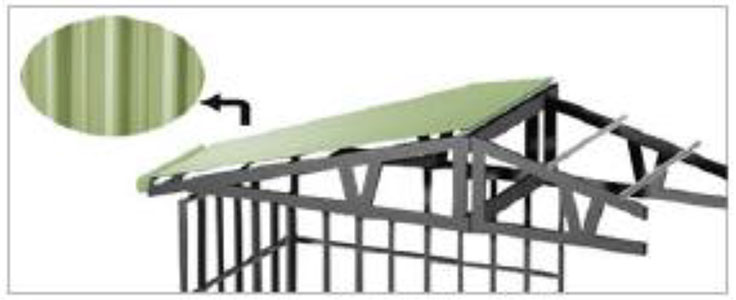

Hex Flange head Double thread Drilling Screw(general use to steel panel to steel material connection)

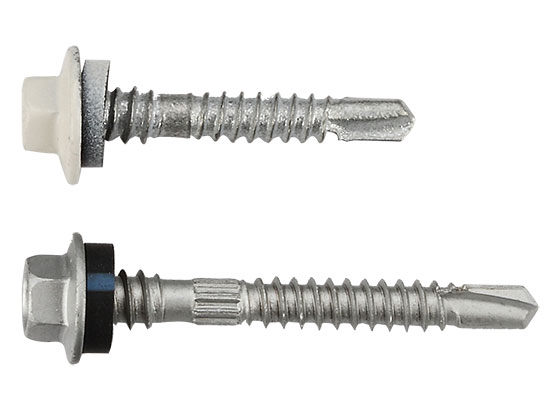

Hex Flange head Double thread Drilling Screw
Product Description

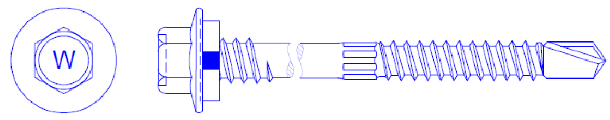

Hex Flange Head (A/F 5/16) Type BSD, Double threads, Straight knurls on flank, #3 drill point
* screw assembled with EPDM washer and head painted color for choices
| Part No. | 131561204825 | 131561206525 | 131561207525 | 131561208525 |
| Gauge | 12 | 12 | 12 | 12 |
| TPI | 14 | 14 | 14 | 14 |
| Length(mm) | 48 | 65 | 75 | 85 |
| Description | Hex Flange Head, A/F 5/16", Drill capacity 5.0mm steel materials | Hex Flange Head, A/F 5/16", Drill capacity 5.0mm steel material | Hex Flange Head, A/F 5/16", Drill capacity 5.0mm steel material | Hex Flange Head, A/F 5/16", Drill capacity 5.0mm steel material |
